Features
ITALIAN BRASS BURNERS WITH 22,000 BTU DUAL BURNER
Premium Italian brass burners deliver powerful heat up to 22,000 BTUs and gentle simmer control down to 1,000 BTUs.
6.0 CU. FT. OVEN CAPACITY
Spacious oven easily fits large baking sheets, roasting pans, and multiple dishes at once.

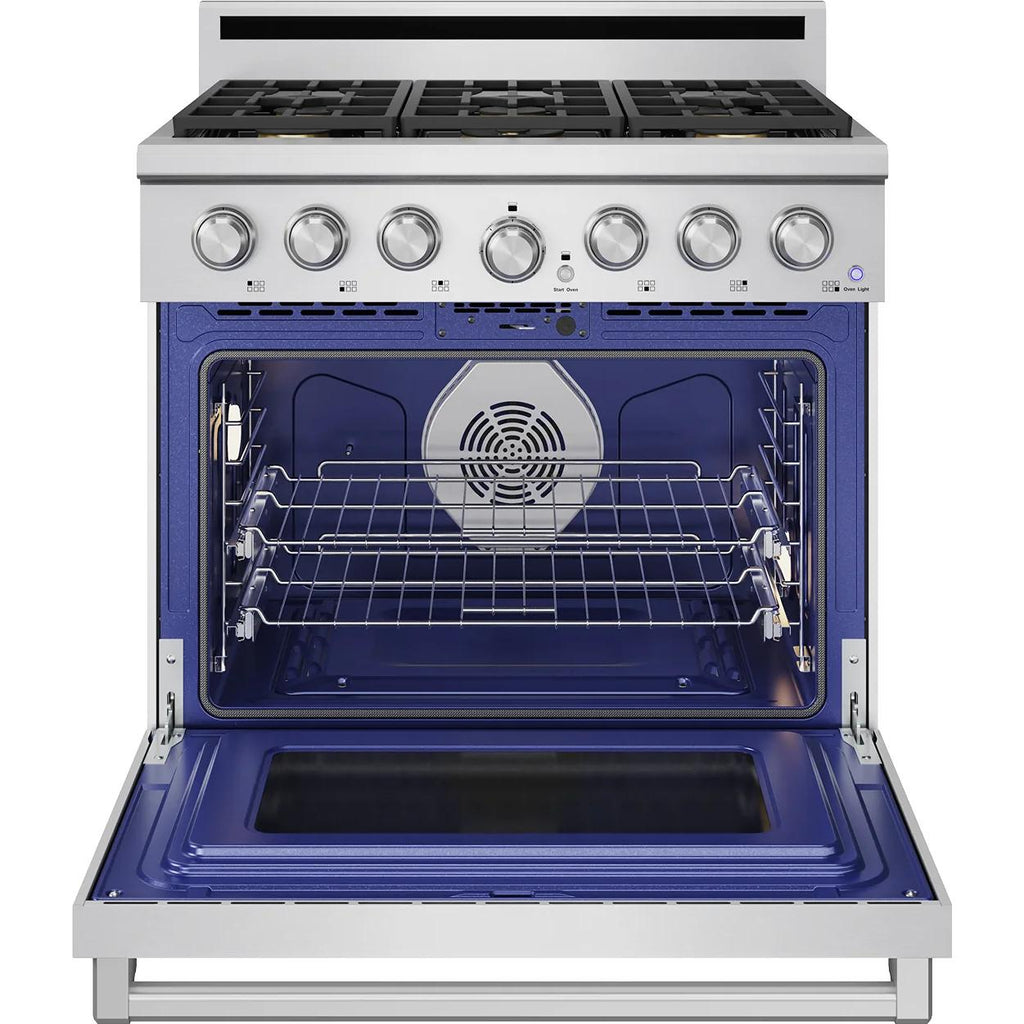

MULTI-FUNCTION OVEN
Dual Function Oven Control offers versatile cooking modes including Bake, Conv. Bake, Roast, Conv. Roast, High & Low Broil, Keep warm, Pizza, and Self-Clean.

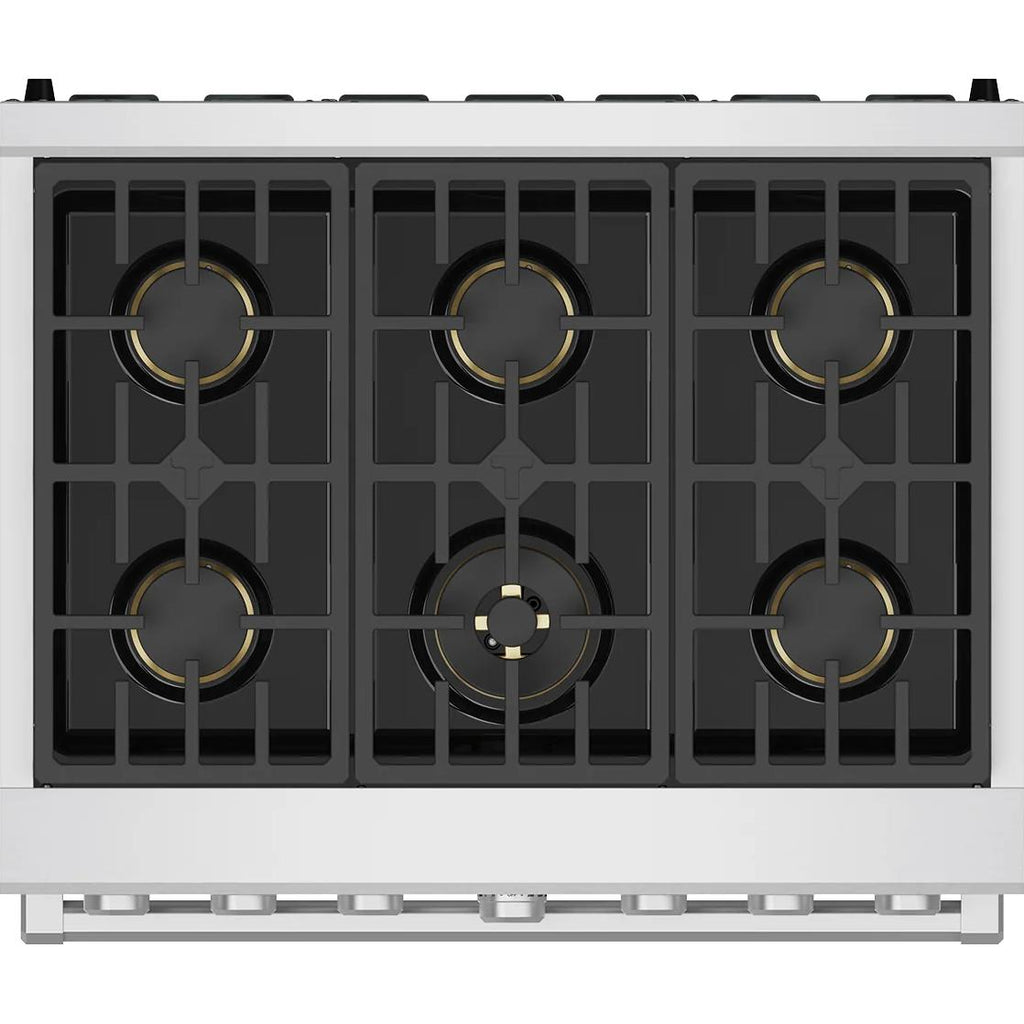

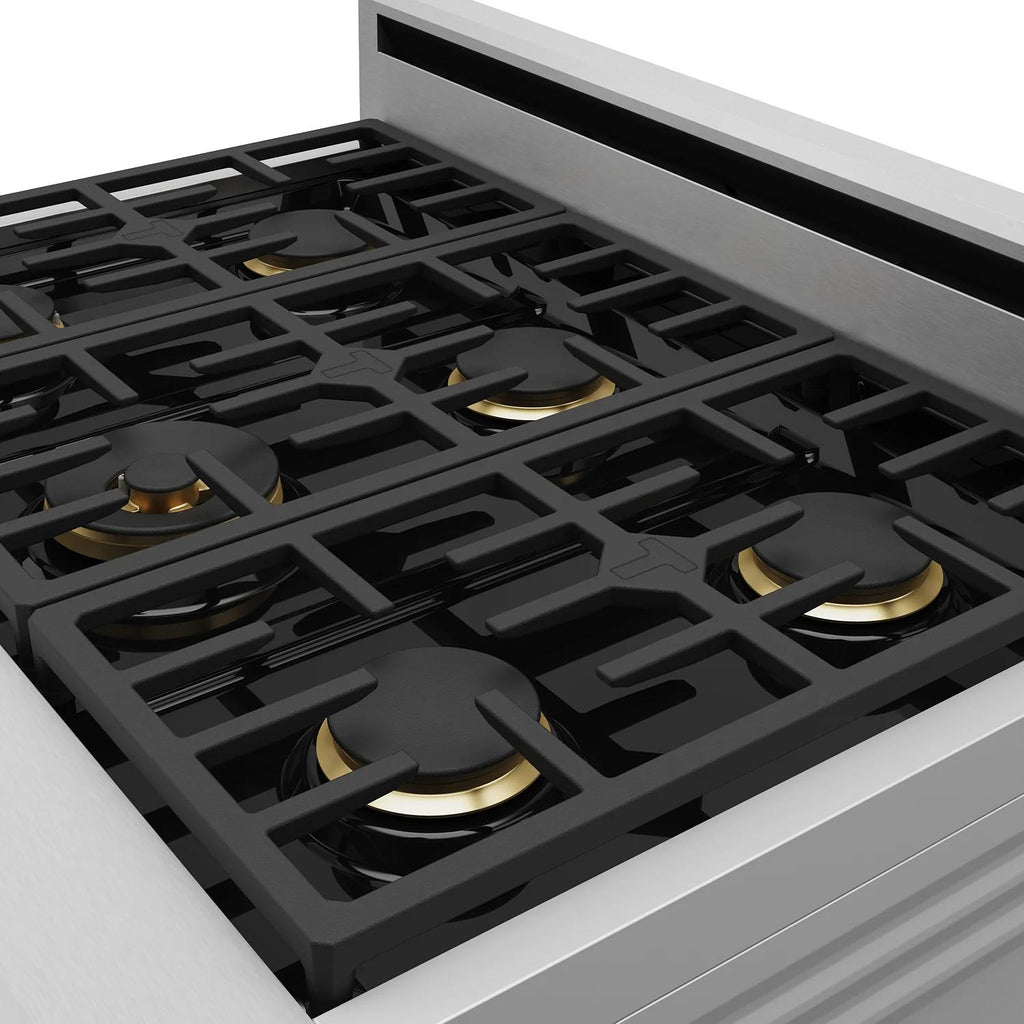

CONTINUOUS CAST-IRON GRATES
Heavy-duty continuous cast-iron cooking grates that can handle any size cookware.

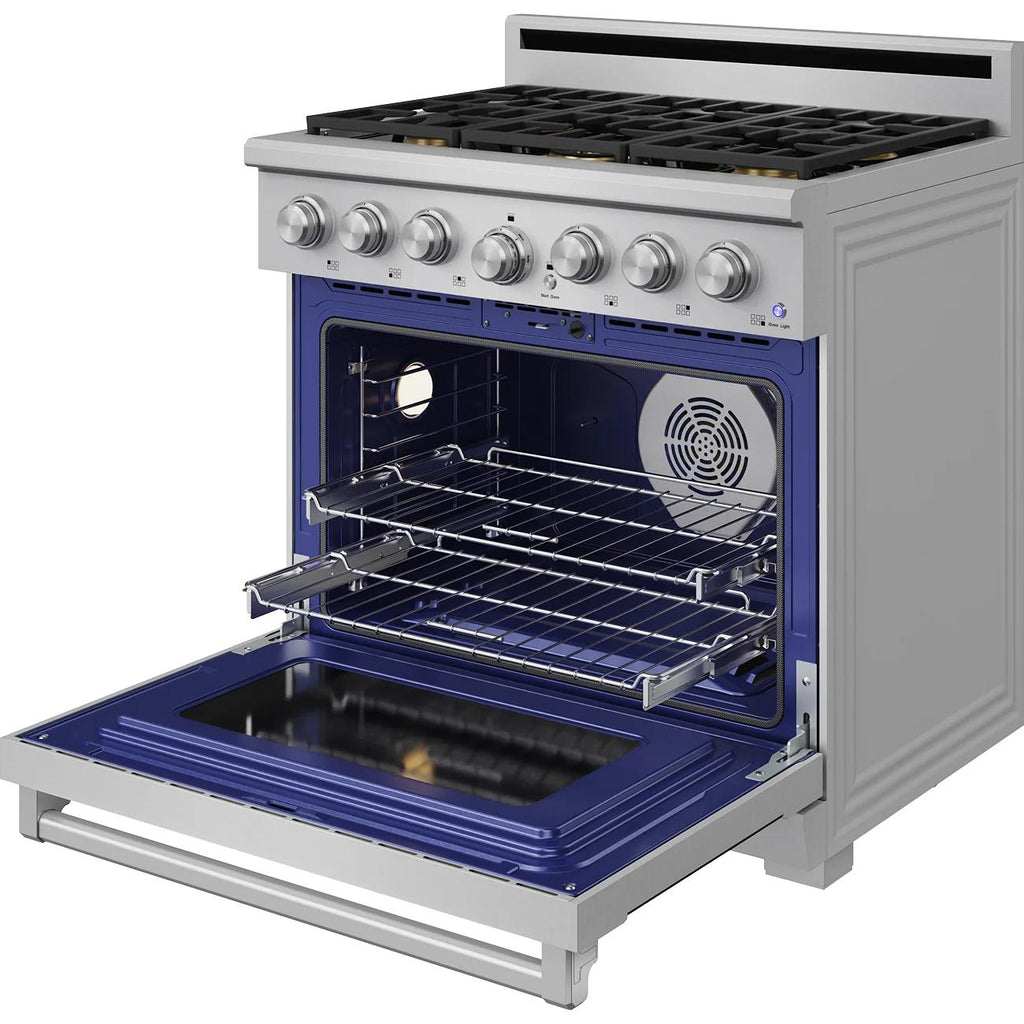

LUXGLIDE™ TELESCOPIC RACKS
Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven. This luxury feature allows the rack to extend fully without tipping over for smooth, easy handling of even the heaviest dishes, and adjusts to fit different rack support levels.
SOFT-CLOSE OVEN DOOR
Gently closes for a quieter, more premium cooking experience.
BUILT-IN CASTERS AND LEVELING LEGS
Easily reposition the range when needed, then level for a secure fit and seamless countertop alignment.
INFRARED BROILER
Infrared gas flame broiler radiates heat evenly to sear your food and seal in the juices.

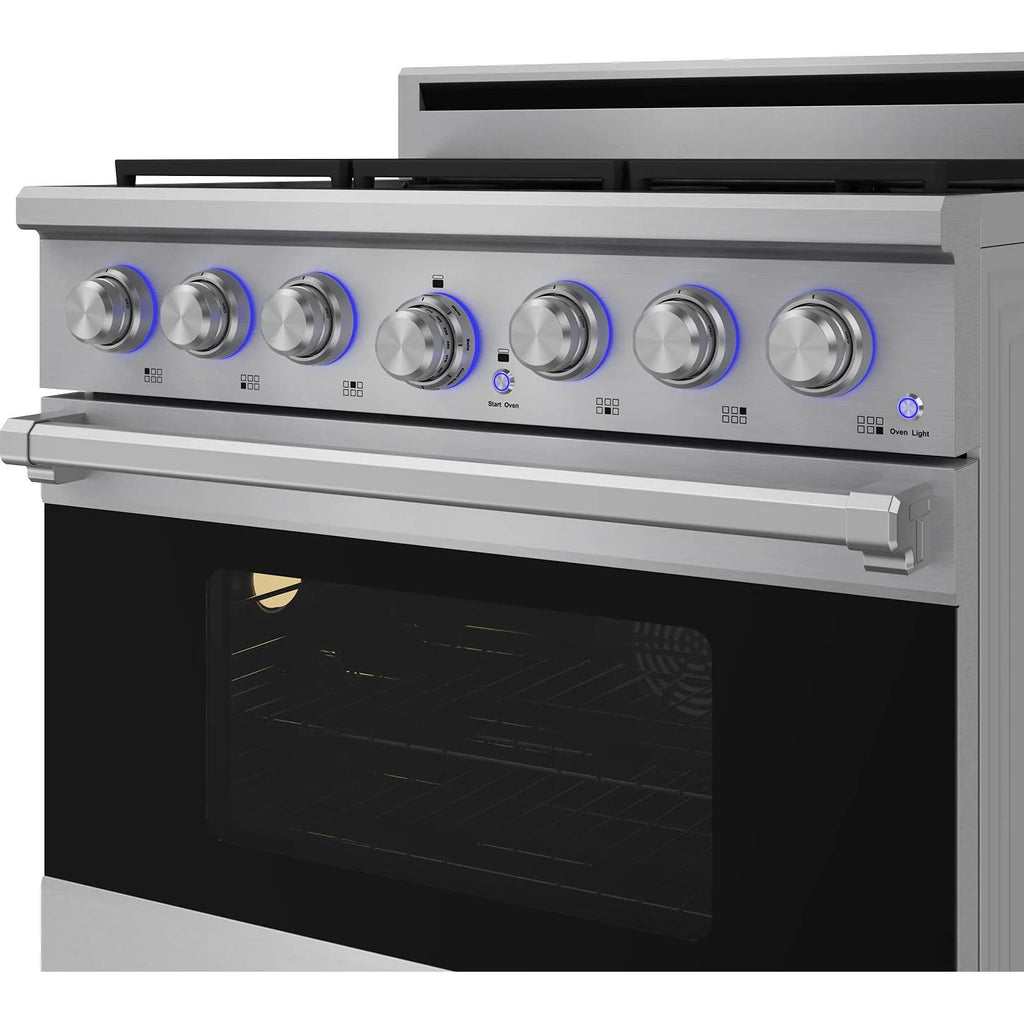

BLUE LED ILLUMINATED KNOBS
Sleek, backlit knobs provide a clear visual cue when burners are in use, enhancing safety and modern style—even visible from across the kitchen.
AUTOMATIC RE-IGNITION FEATURE
Automatic re-ignition feature relights an extinguished flame for safer cooking.
Specifications
General
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
6
Burners/Elements Output
• Front Left Burner: 15000 BTU
• Rear Left Burner: 12000 BTU
• Front Center Burner: 22000 BTU (Dual) Simmer 1000 BTU
• Rear Center Burner: 12000 BTU
• Front Right Burner: 15000 BTU
• Rear Right Burner: 12000 BTU
• Rear Left Burner: 12000 BTU
• Front Center Burner: 22000 BTU (Dual) Simmer 1000 BTU
• Rear Center Burner: 12000 BTU
• Front Right Burner: 15000 BTU
• Rear Right Burner: 12000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
6.0 cu. ft.
Number of Ovens
Single
Programs
• Bake
• Conv. Bake
• Roast
• Conv. Roast
• High & Low Broil
• Keep Warm
• Pizza
• Self-Clean
• Conv. Bake
• Roast
• Conv. Roast
• High & Low Broil
• Keep Warm
• Pizza
• Self-Clean
Features
Convection
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Type of Grate: Continuous
• Control Type: Knob
• Oven Control Features: Light On/Off
• Bake Burner Power: 22000 BTU
• Broil Burner Power: 16500 BTU Infrared Broiler
• Convection: Standard
• Oven Lights: 2 (Side)
• Oven Racks (telescopic): 2
• Oven Rack Material: Chrome Plated
• Baking Sheet Size: Fits Standard Three-Quarter Sheet Pan
• Control Type: Knob
• Oven Control Features: Light On/Off
• Bake Burner Power: 22000 BTU
• Broil Burner Power: 16500 BTU Infrared Broiler
• Convection: Standard
• Oven Lights: 2 (Side)
• Oven Racks (telescopic): 2
• Oven Rack Material: Chrome Plated
• Baking Sheet Size: Fits Standard Three-Quarter Sheet Pan

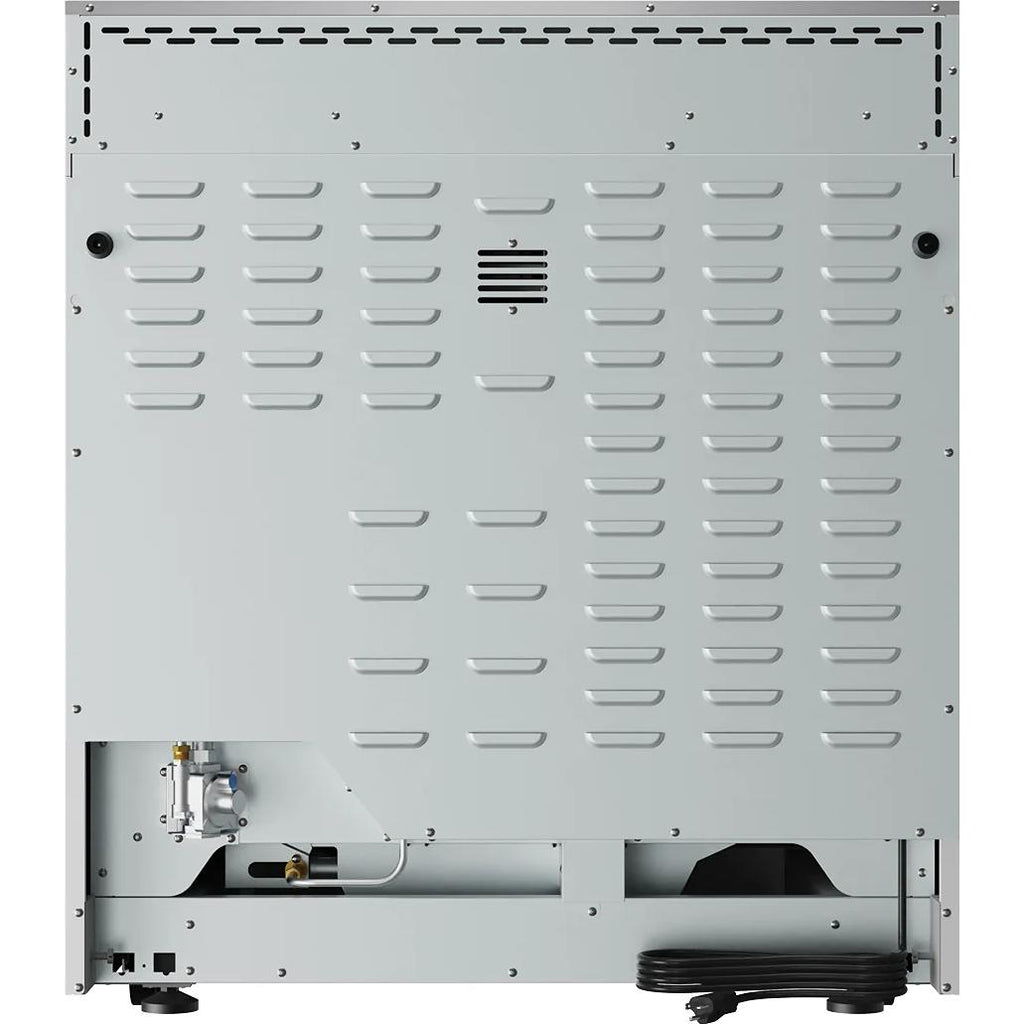

Electrical Information
Information
• Required Circuit: 15 Amp Dedicated Circuit
• Max Current Draw: 6 Amps
• Volts: 120V
• Frequency: 60Hz
• Plug Type: NEMA 5-15P / US 3-prong
• Power Cord Length: 59"
• Max Current Draw: 6 Amps
• Volts: 120V
• Frequency: 60Hz
• Plug Type: NEMA 5-15P / US 3-prong
• Power Cord Length: 59"
Accessories
Included
2 Telescopic Racks and 1 Broiler Pan
Optional
• LP Kit
• Island Trim: RG1022
• Island Trim: RG1022
Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.11 cm
Height
36.13 inch(es) / 91.77 cm
Weight
280.01 lb(s) / 127.01 kg
Additional Dimensions
• Oven Internal Height: 18"
• Oven Internal Width: 29-3/4"
• Oven Internal Depth: 19-1/2"
• Product Height (from bottom to top of backsplash): 41-1/2"
• Product Height (from bottom to top of side panel): 32-7/8"
• Product Depth (from back panel to bullnose): 28-1/2"
• Product Depth (from back panel to control panel): 27-1/8"
• Product Depth (from back panel to side panel front): 24-1/2"
• Cutout Dimensions (WxDxH): 36" x 24" x 36"
• Adjustable Leg Height: 3"
• Oven Internal Width: 29-3/4"
• Oven Internal Depth: 19-1/2"
• Product Height (from bottom to top of backsplash): 41-1/2"
• Product Height (from bottom to top of side panel): 32-7/8"
• Product Depth (from back panel to bullnose): 28-1/2"
• Product Depth (from back panel to control panel): 27-1/8"
• Product Depth (from back panel to side panel front): 24-1/2"
• Cutout Dimensions (WxDxH): 36" x 24" x 36"
• Adjustable Leg Height: 3"
Shipping Dimensions
Width
39.17 inch(es) / 99.49 cm
Height
49 inch(es) / 124.46 cm
Depth
30.13 inch(es) / 76.53 cm
Weight
340 lb(s) / 154.22 kg
