Specifications
General
Series Name
Hamburg
Blower Included
Yes
Airflow
1000 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Dishwasher-Proof Filters
Yes
Ducting Information
6" Top Round
Speeds
16 levels of speed using the touch control panel
Additional Information
• This unit exhausts air at a 1000cfm level
• You can switch between 16 levels of speed using the touch control panel
• Multiple control by voice, gesture or touch screen
• DC motor makes it quiet than normal

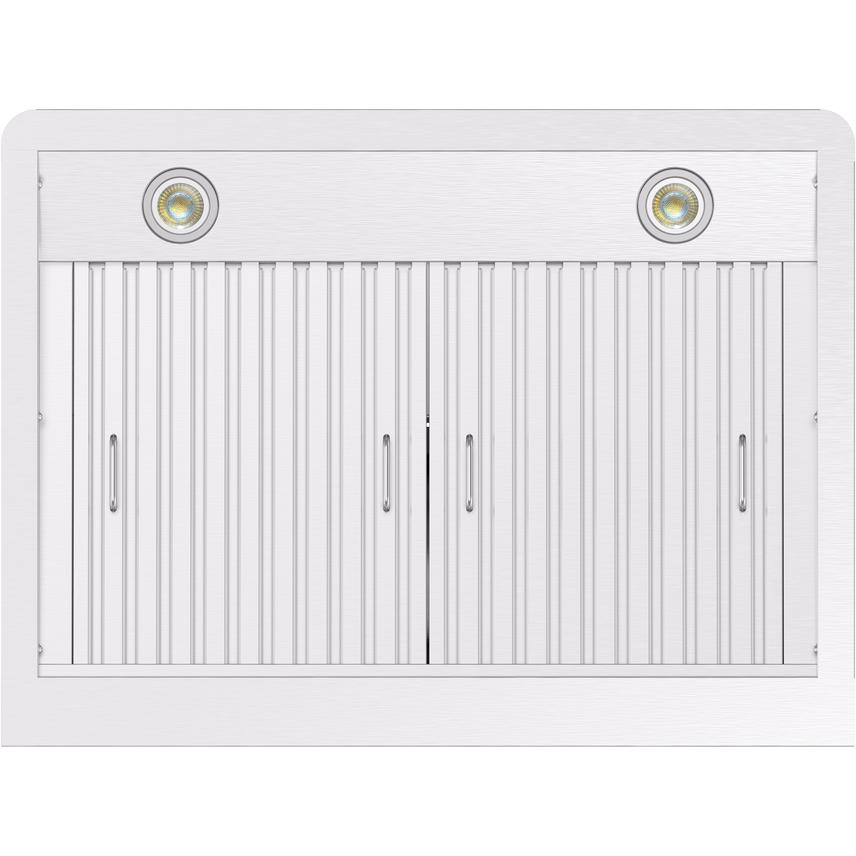

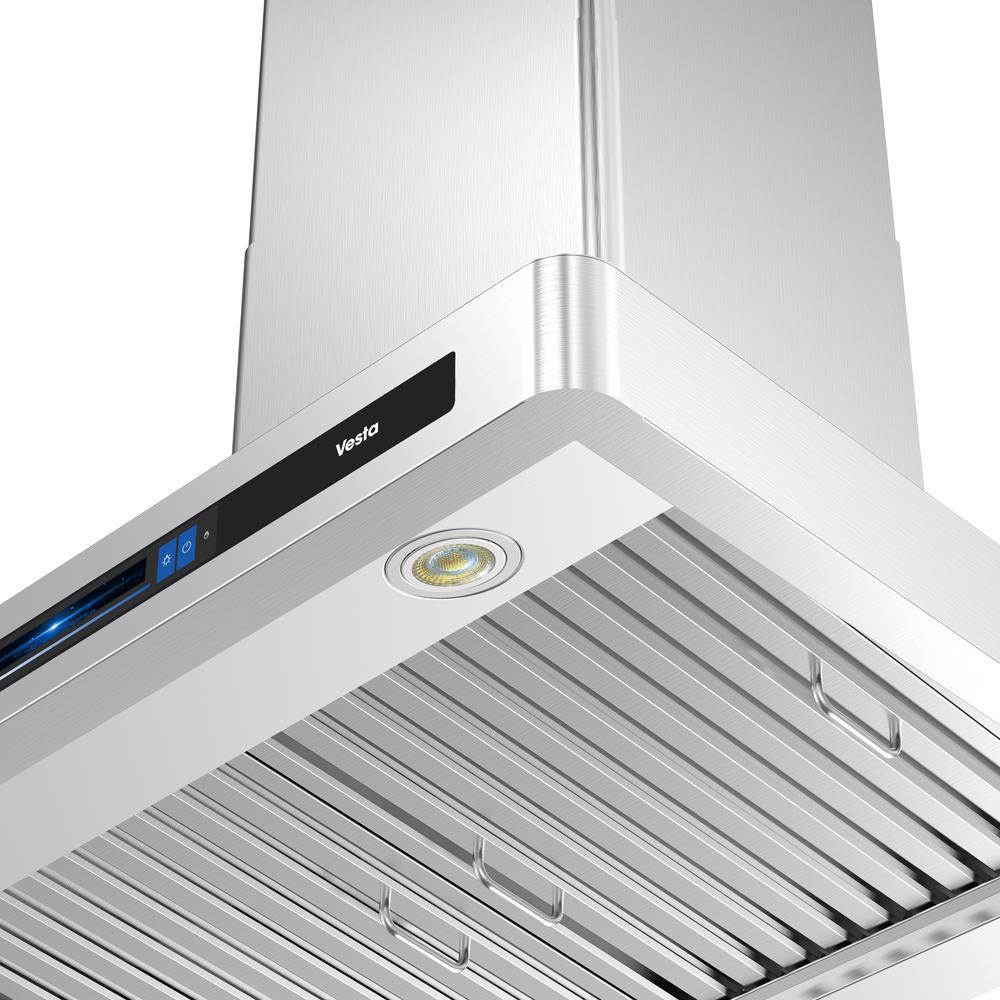

• The baffle filters are detachable and dishwasher friendly

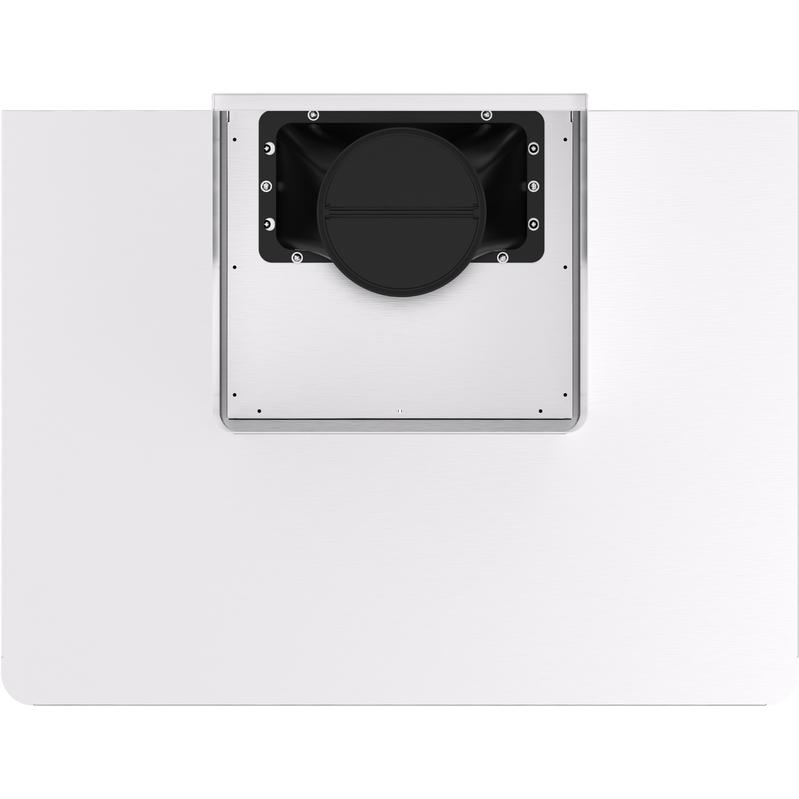

• Top vent connector is 6" diameter round shape
• Two LED lights are energy saving and long lasting
• Seamless stainless steel body are easy to clean with a wet cloth
• Motor Power: 80 Watts
• No. of Motors: 1
• Max Noise Level: 60 db
• Delayed Shut Off, Voice Control, Gesture Control, Oil Tray, DC Motor
• You can switch between 16 levels of speed using the touch control panel
• Multiple control by voice, gesture or touch screen

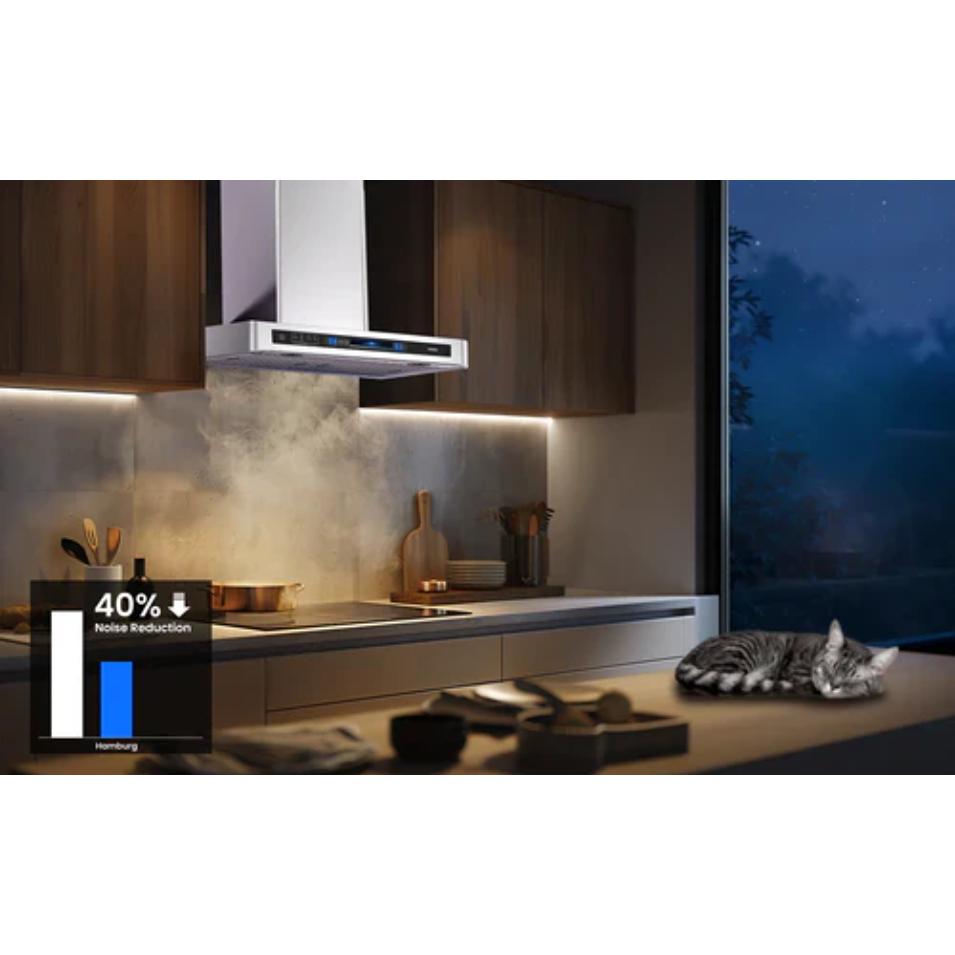

• DC motor makes it quiet than normal
• The baffle filters are detachable and dishwasher friendly
• Top vent connector is 6" diameter round shape
• Two LED lights are energy saving and long lasting
• Seamless stainless steel body are easy to clean with a wet cloth
• Motor Power: 80 Watts
• No. of Motors: 1
• Max Noise Level: 60 db
• Delayed Shut Off, Voice Control, Gesture Control, Oil Tray, DC Motor
Certifications and Approvals
Information
Certificate: cETL
Dimensions
Class Width
36"
Width
35.4 inch(es) / 89.92 cm
Height
22 inch(es) / 55.88 cm
Depth
29.5 inch(es) / 74.93 cm
Additional Dimensions

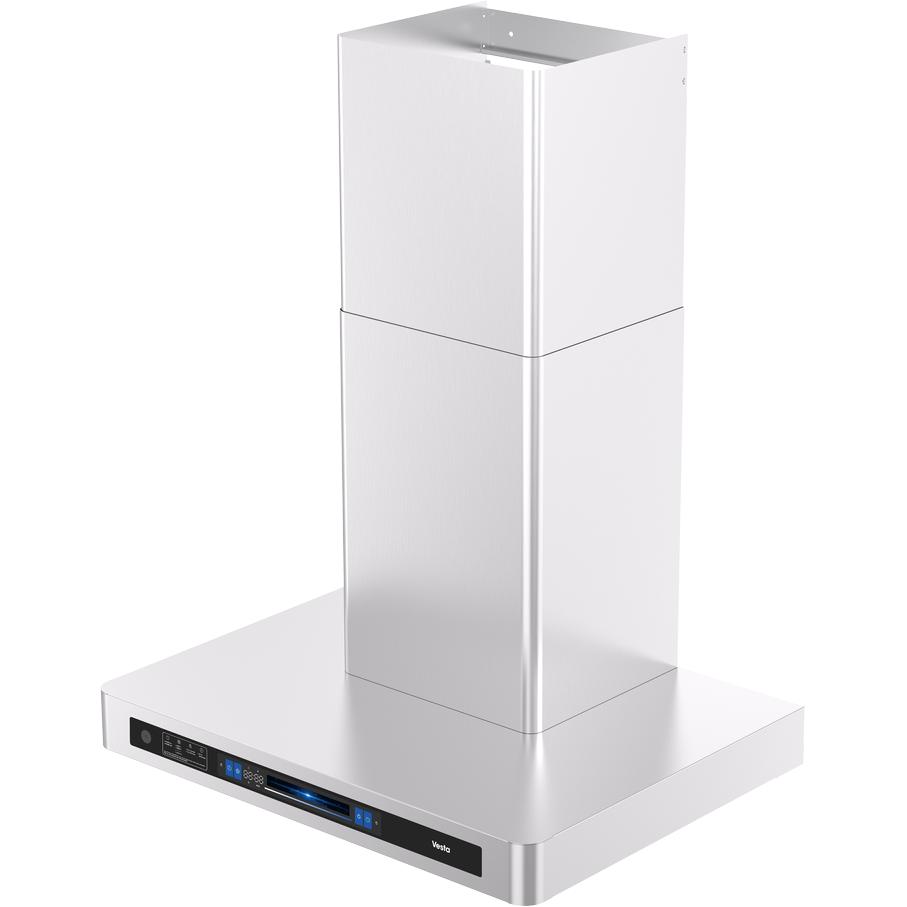

• Chimney Dimension (WxDxH): 13.2"x11.95"x(26.37"-52.7")
• Product Dimension (WxDxH): 36": 35.4"x22"x(29.52"-55.85")
• Product Dimension (WxDxH): 36": 35.4"x22"x(29.52"-55.85")
Warranty
Warranty
1 Year for Parts and Labour and Lifetime for Motors
UPC
UPC#
675487202225
